Power your lights with the creativity of Pixel Lights

With the Pixel Lights Controller, you can easily control your lights with the Pixel Lights App. It is compatible with a wide range of lights and allows for easy setup and customization.

Whether you're looking to create a stunning light show or just want to add some ambiance to your space, the Pixel Lights Controller has you covered.

Controller Features

We've designed the Pixel Lights Controller to be the ultimate solution for your lighting needs.

Easy to use and set up
Compatible with a wide range of lights
Low-power consumption
Connects to your home network for easy access
Set on and off times during the day
Works seamlessly with the Pixel Lights App
Infinite ways to customize colours and patterns
Extend features with a Cloud device

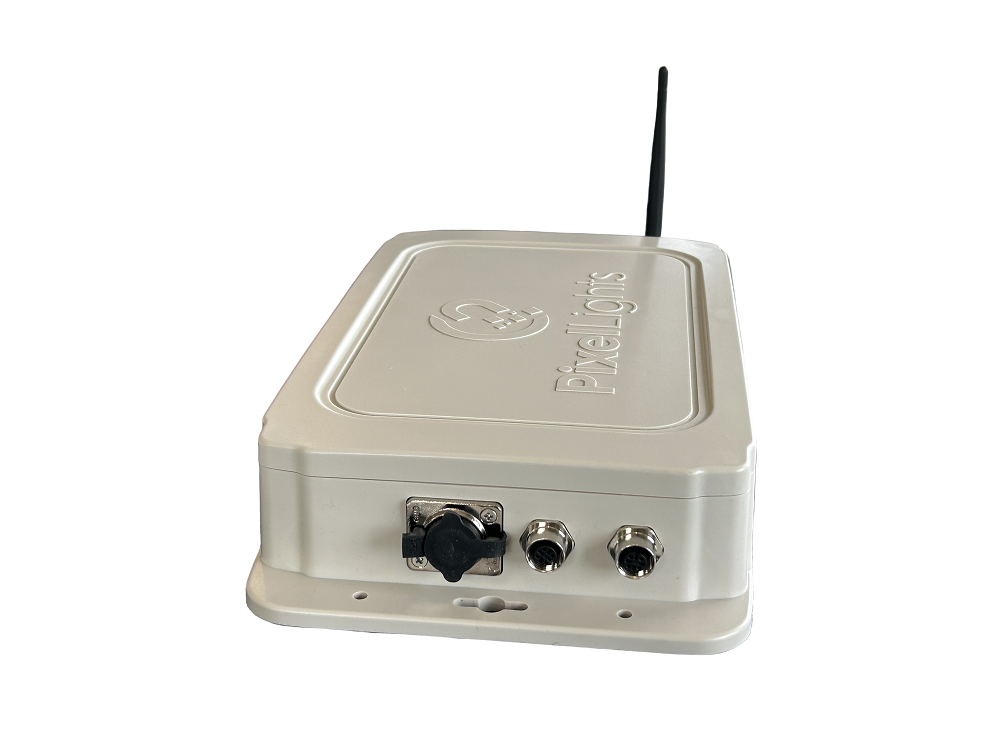

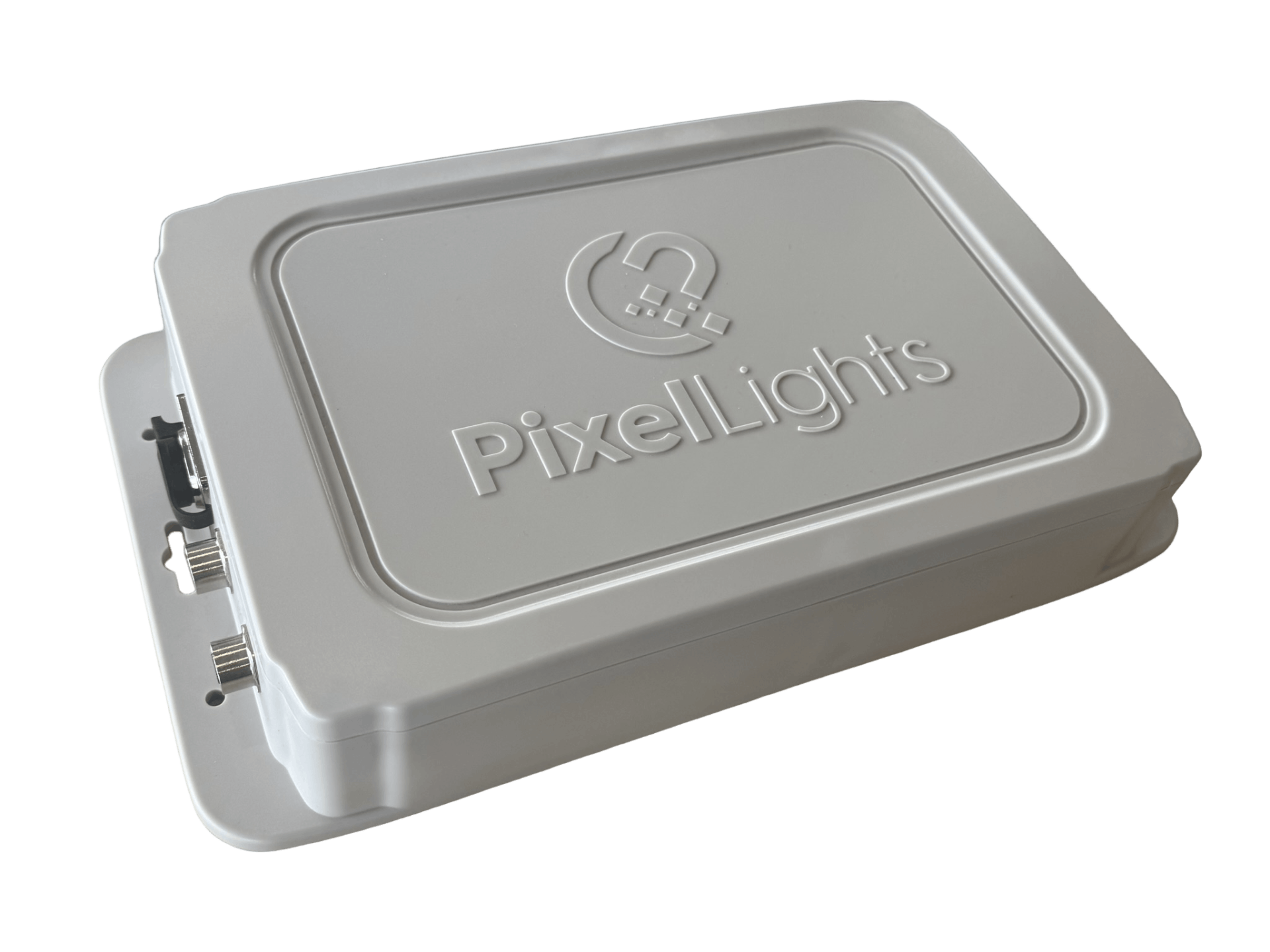

Controller Details

Input Voltage	100-240V AC
Output Voltage	24v DC, 12v DC (optional, contact for info)
Output Quantity	2 individually fused outputs
Wattage	100W and 200W options available
Control Methods	App (Local-Network, Cloud), Web (Local-Network, Cloud)
IP (Water) Rating	IP65
Operating Temp	-40°C to 50°C
Fuse Type	3 x replaceable mini-blade fuses.
Connectivity	Wi-Fi 2.4GHz, Direct Ethernet, Cloud (optional)
Power Cable	3' Twist-lock, 3' extensions available
Output Connectors	4-pin M12, Universal Cable option available
IC Types	WS28xx, GS8208, SK9822/6812, NS108, APA102, UCS7604/5603/2903/2904/1903/1904, NeoPixel
Dimensions	12.5" x 7.125" x 2.25" (316mm x 181mm x 58mm)
Maximum Pixel Quantity	4500 bulbs, contact for more info on large quantities
Certification	ETL certified (Canada, USA)
